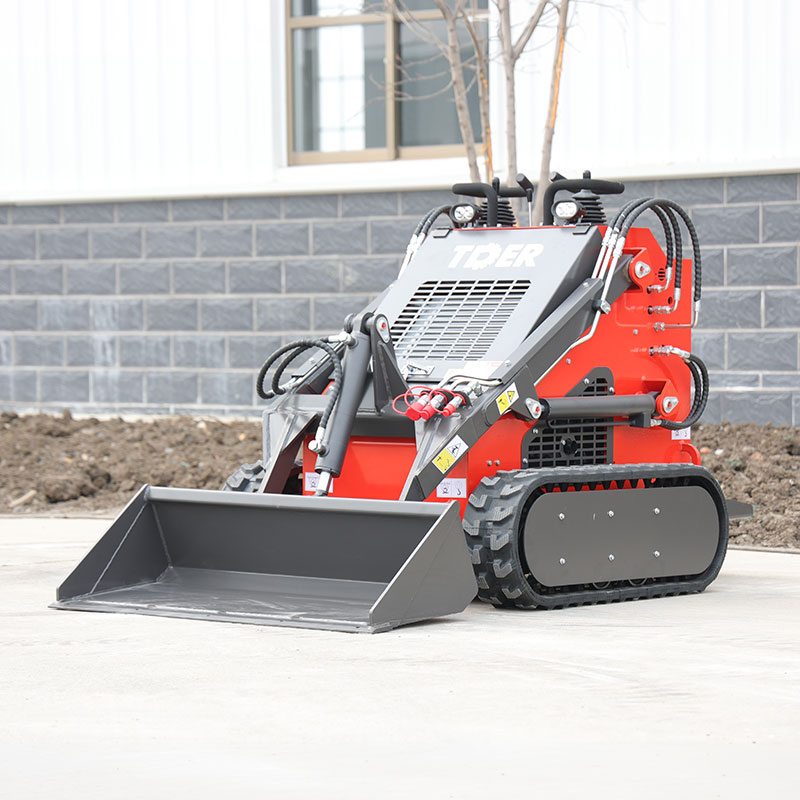

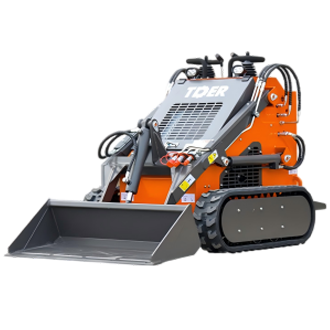

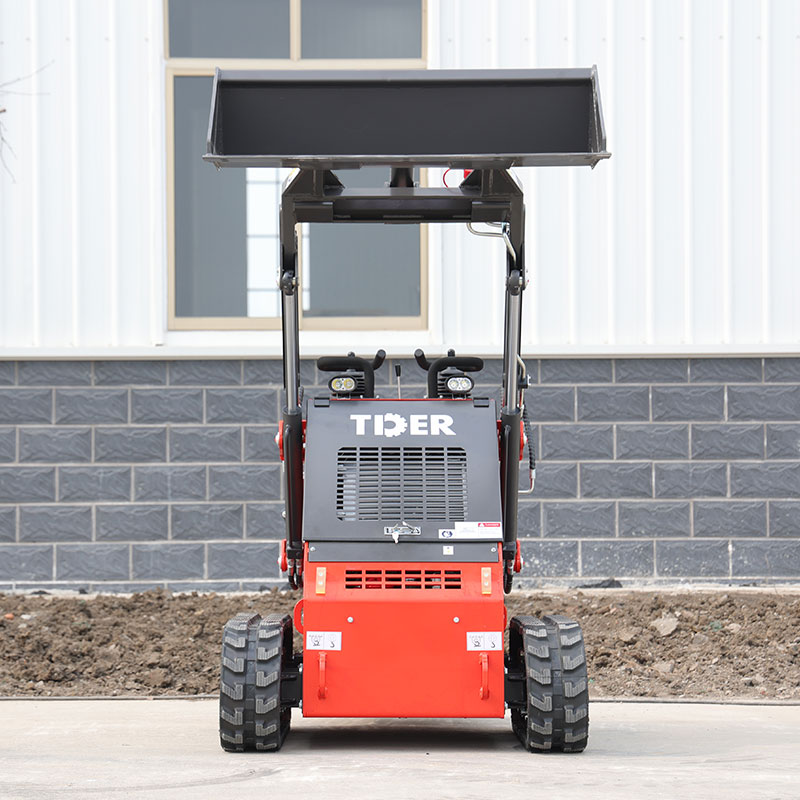

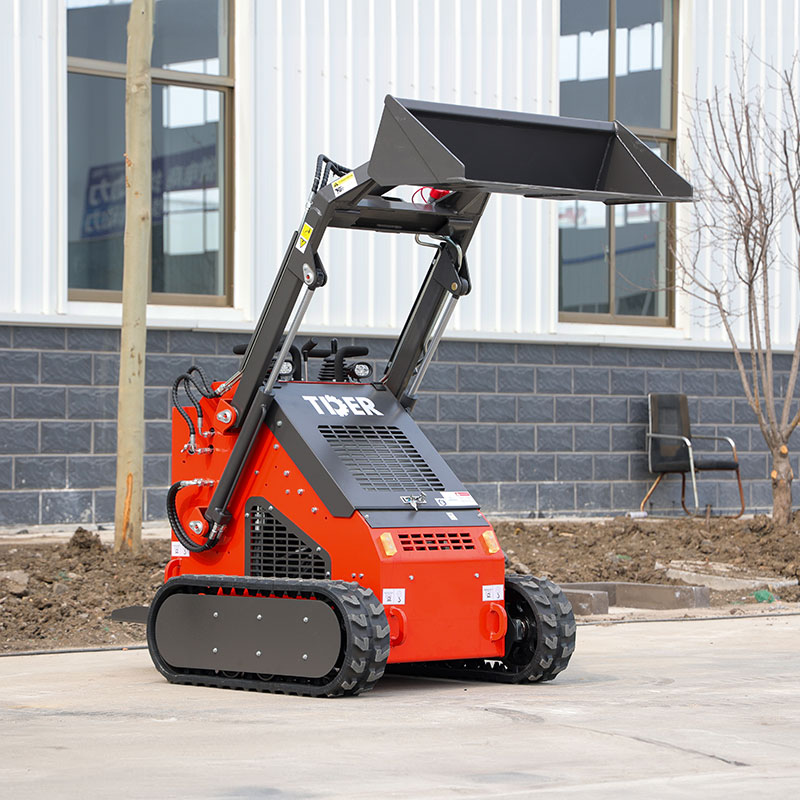

260kg Stand-On Track Skid Steer Loader
DS23
Features
Compact Yet Capable Stand-On Design
The DS23 features a compact stand-on platform with a width of just 1090mm and height of 1270mm, enabling confident operation in confined spaces such as narrow alleys, indoor renovations, and farm pathways. Despite its small footprint, it delivers a rated load of 260kg and a 0.15m³ bucket, ensuring precise handling and productive operation.
Flexible Engine Options with International Brands
Operators can choose from a range of top-tier engines, including Briggs & Stratton, Rato, Koop, and Honda petrol engines, or Koop KD2V80 diesel engines, all meeting EPA and Stage V emission standards. This versatility allows users to select powertrains tailored to local fuel availability, emission regulations, and maintenance networks.
Durable, Low-Ground-Pressure Track System
Reinforced steel tracks generate minimal ground pressure compared to wheeled machines, providing excellent flotation and traction on mud, sand, and slopes. This design ensures reliable maneuverability and operational stability, even on soft or uneven terrain.
Ergonomic, Operator-Centric Controls
Intuitive manual controls are paired with full-visibility operation, allowing operators to work confidently and accurately in tight environments.
High-Durability Hydraulic Components
DS23 is equipped with dual-pump, dual-valve hydraulic circuits and custom hydraulic cylinders, delivering consistent power and responsive control for lifting, dumping, and material handling. These robust components are designed to withstand extended operation under demanding conditions with minimal maintenance.
Enhanced Safety and Visibility
LED work lights come standard, offering clear illumination for low-light or nighttime operations. The stand-on position also elevates operator sightlines, improving awareness and safety during precise or high-frequency tasks.
Specifications
| Rated Load | kg | 260 | ||
| Bucket Capacity | m³ | 0.15 | ||
| Max. Lift Weight | kg | 375 | ||
| Overall Dimensions | mm | 2285*1090*1270 | ||
| Working Speed | km/h | 0-6 | ||
| Rated Pressure | Mpa | 17 | ||
| Lifting Time | S | 4.3 | ||
| Descent Time | S | 3.3 | ||
| Dumping Time | S | 1.5 | ||
| Climbing Ability | % | 30 | ||
| Working Weight | kg | 920 | 930 | 950 |
| Brand | Briggs&Stratton 3864 | Rato R740D | KOOP KD2V80 | |
| Type | Petrol engine, V-twin | Diesel engine, water-cooled, V-twin | ||
| Output Power | 23HP/3600rpm | 23HP/3600rpm | 20HP/3000rpm | |
| Fuel Consumption | L/h | ≤6.7 | ≤6.7 | ≤3.6 |
| Starting Method | Electric start | |||
| Fuel Tank | L | 25 | ||
| Engine Oil | L | 1.7 | 1.6 | 3 |
| Hydraulic Tank | L | 25 | ||
