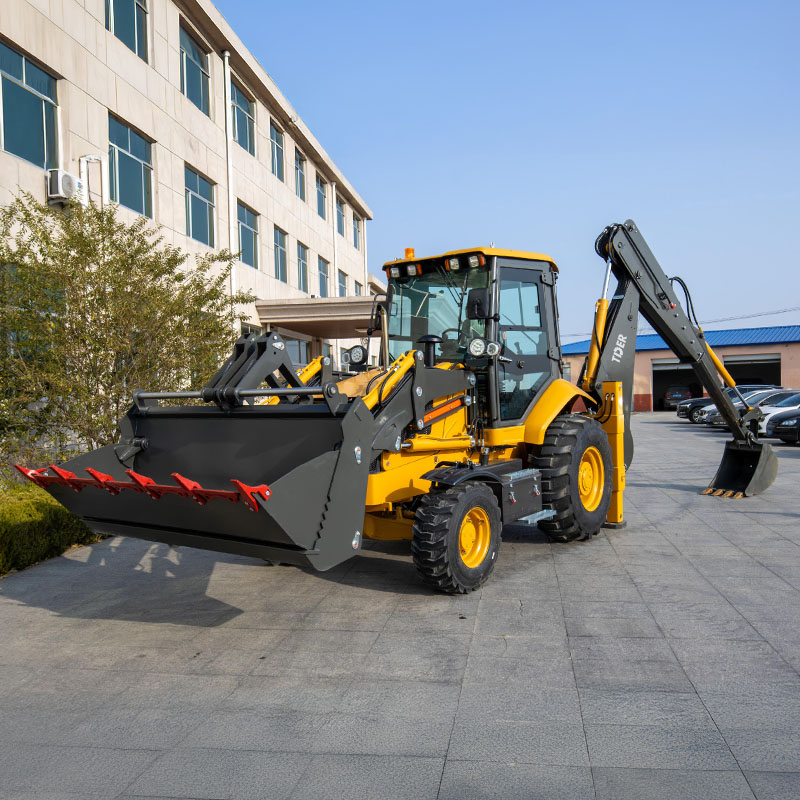

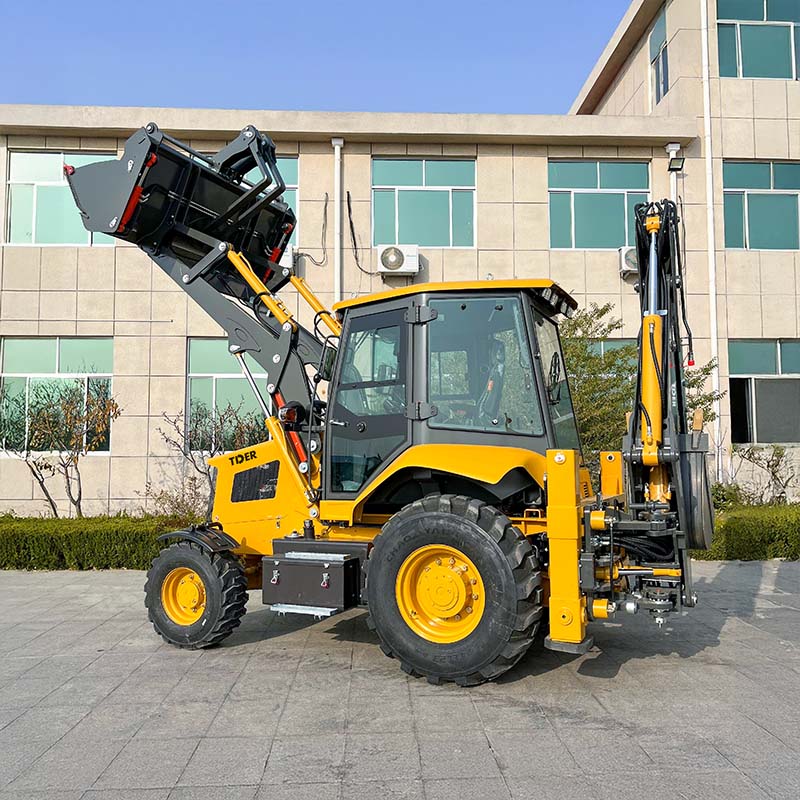

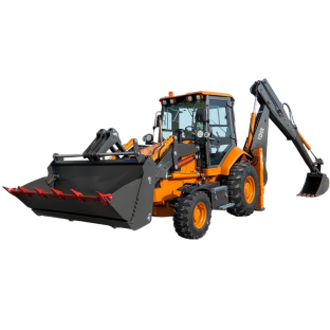

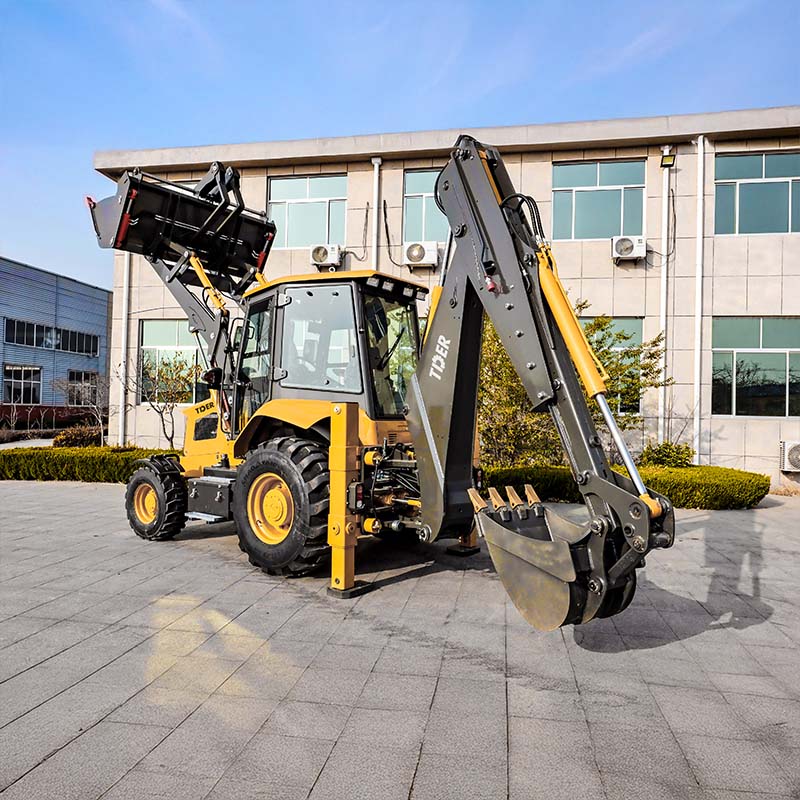

2.5 Ton Backhoe Loader
ZT388-Ⅲ
Features
Efficient Power System Designed for Cost Control and Global Use
Powered by a 75kW diesel engine from Yuchai, ZT388-Ⅲ delivers stable performance with improved fuel efficiency for lower operating costs.
The engine platform supports Euro V upgrade and optional Cummins configuration, ensuring compliance with different emission standards and adaptability for global construction markets.
Safety & Operation Protection System
Certified ROPS anti-rollover cab, in-cab boom lock system, and boom safety guard work together to enhance operator safety and reduce operation risks during heavy-duty work.
Operator Cabin Comfort & Visibility System
The cabin is equipped with air conditioning, a 10-inch intelligent display, reverse camera, and sunshade system, improving all-round visibility and helping reduce operator fatigue during long working hours, especially in demanding construction environments.
Working Flexibility & Attachment Compatibility System
The H-type hydraulic side-shift stabilizer system, boom float function, and front loader multi-line hydraulic piping improve machine adaptability, allowing smoother operation in confined spaces and enabling compatibility with a wide range of attachments for different job site requirements.
Reinforced Structural Durability System
The reinforced welded frame structure, cast components, and newly designed engine hood enhance overall machine strength, improving durability and ensuring long-term operational stability under heavy-duty construction conditions.
Efficient Operation Control
The 4 forward and 4 reverse semi-electronic transmission system improves gear shifting response while maintaining mechanical reliability. It allows smoother transitions between working and traveling conditions, helping the operator achieve better control efficiency in different job site tasks.
Specifications
| Overall Dimensions | Dimensions (mm) | 6150*2350*3763 |
| Wheel base (mm) | 2250 | |
| Track (mm) | 1950 | |
| Minimum Ground Clearance (mm) | 300 | |
| Minimum Turning Radius (mm) | 6580 | |
| Performance Parameters | System Pressure (Mpa) | 18 |
| Total Weight (kg) | 8300/8500 | |
| Maximum Speed (Km/h) | 28/38 | |
| Maximum Climbing Ability (°) | 35 | |
| Excavation Parameters | Maximum Telescopic Excavation Depth (mm) | 4000/5300 |
| Maximum Excavation Radius (mm) | 4800/6000 | |
| Maximum Lifting Height (mm) | 5200/5950 | |
| Bucket Capacity (m³) | 0.3 | |
| Excavator Rotation Angle (°) | 190 | |
| Loading Parameters | Maximum Unloading Height (mm) | 2742 |
| Maximum Unloading Distance (mm) | 1062 | |
| Bucket Capacity (m³) | 1.2 | |
| Engine | Model | Yuchai |
| Rated Power (KW) | 75 | |
| Rated Speed (r/min) | 2600 | |
| Cylinders-Bore (mm) | 4-105 | |
| Transmission System | Gearbox | Semi-Electronic Shift Transmission |
| Number of Gears | 4 Forward, 4 Reverse | |
| Liquid Torque Converter | Beilian ZL26 | |
| Axle | Brand | Yunyu |
| Tires | 14-17.5/19.5L-24 | |
| Driving Brake | Air Over Hydraulic Disc Brake | |
| Parking Brake | Air Brake | |
| Oil Capacity | Fuel Tank (L) | 100 |
| Hydraulic Oil Tank (L) | 100 | |
| Others | Drive Type | Four-wheel Drive |
| Transmission Type | Liquid Transmission | |
| Control System | Electromagnetic Hydraulic Pilot Control |
