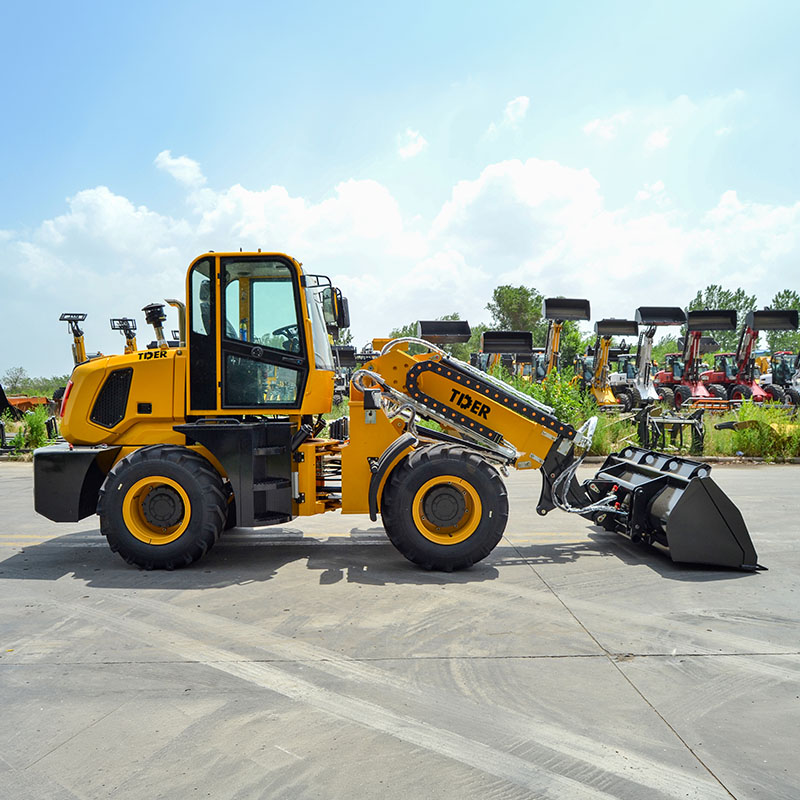

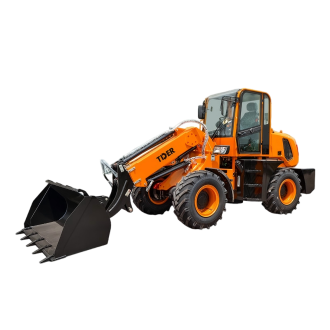

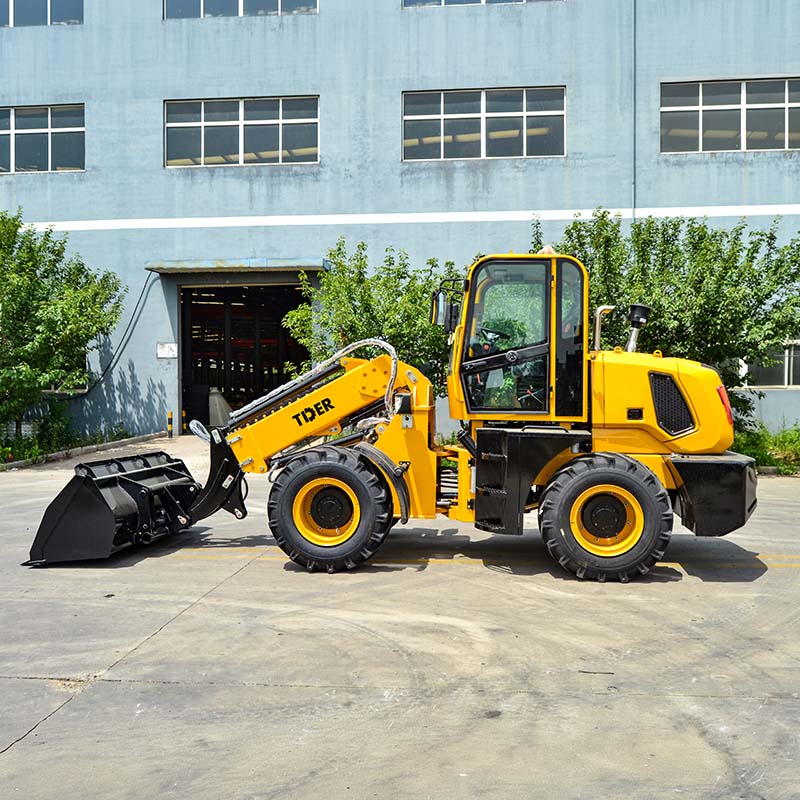

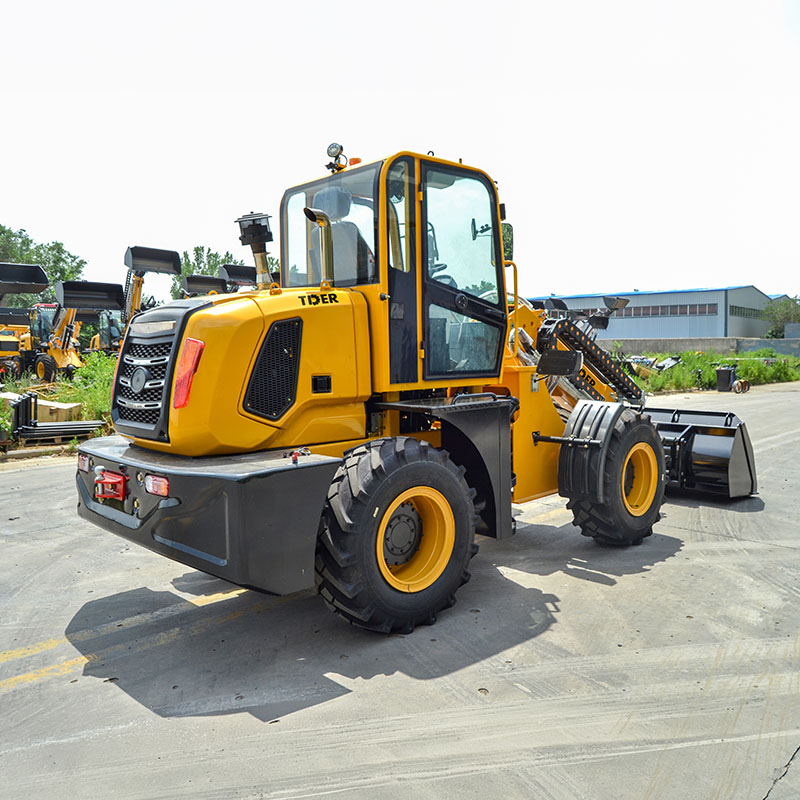

2 Ton Telescopic Loader
ZT920T
Features
Multi-Brand Engine Options with Euro V / EPA Compliance
The ZT920T supports multiple internationally recognized engine options including Cummins, Yanmar, and Kohler, meeting Euro V and EPA emission standards. This flexible power platform allows customers to select the most suitable engine configuration based on regional regulations and working conditions, ensuring both compliance and reliable performance in global applications.
Hydrostatic Drive System for Smooth All-Speed Control
The integrated hydrostatic CVT drive system delivers full-range speed control with smooth acceleration and stable driving performance, improving operator comfort and efficiency during frequent start-stop operations.
Compact Short-Wheelbase Design for High Maneuverability
A short wheelbase with transverse engine layout improves machine agility and balance, making it highly effective in confined spaces and complex jobsite conditions.
Heavy-Duty Off-Road Tire System for Long Service Life
Reinforced 16/70-20 pattern tires provide strong wear resistance and traction, ensuring durability and stable operation on rough and uneven terrain.
Ergonomic Operator Cabin with Integrated Safety System
The fully upgraded operator cabin features an adjustable seat, ergonomic controls, and a digital display system designed for long-hour operation comfort. Integrated safety and visibility equipment including LED lighting, warning beacon, rear-view monitoring, emergency hammer, and all-round lighting system enhance operator awareness and safety in complex working environments.
Cold Start Preheating System for Reliable Winter Operation
The 220V external power preheating system ensures reliable engine start in low-temperature environments, reducing cold-start wear and improving operational readiness in winter construction and high-altitude working conditions.
Specifications
| Rated load | kg | 2000 |
| Engnie | Yunnei YN33GBZ | |
| Rated Power | KW | 65 |
| Overall Length | mm | 6500 |
| Overall Width | mm | 2000 |
| Overall Height | mm | 2860 |
| Max. Discharge height | mm | 4500 |
| Min. Discharge height | mm | 3500 |
| Bucket Capacity | m³ | 1 |
| Bucket Type | Heavy-duty bolt on teeth | |
| Max. Load | 2000 including bucket or attachment | |
| Steering System | Articulated hydraulic steering | |
| Driving System | Four wheel drive | |
| Service Brake | Four wheel disc brake | |
| Parking Brake | Disc brake | |
| Tire Model | 16/70-20 | |
| Wheel base | mm | 2500 |
| Wheel Track | mm | 1500 |
| System pressure | Mpa | 20 |
| Weight | kg | 5500 |
