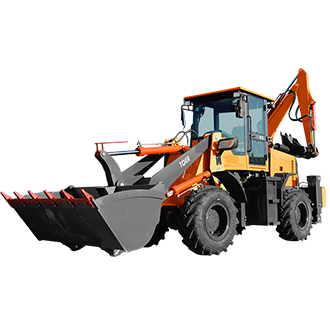

2 Ton Backhoe Loader
ZT20-40
Features
4F/4R Gear Transmission for Flexible Operation Control
The 4 forward and 4 reverse gear configuration provides better speed control and adaptability across different working conditions, allowing smoother transitions between loading and traveling operations.
A-Type Outriggers with Side Swing Excavation
The A-type outrigger design, combined with 180° rotation and active side swing function, allows flexible excavation in confined spaces and improves operational efficiency without frequent repositioning.
Responsive Steering & Reliable Braking for Safer Operation
The articulated full hydraulic steering system provides smooth and precise maneuverability, allowing easier control in confined or complex job sites.
Combined with the air-over-hydraulic disc braking system, the machine ensures faster braking response and more reliable stopping performance, enhancing overall operational safety.
Enhanced Torque & Power Efficiency for Heavy-Duty Operation
The split-type high and low-speed transmission system allows the machine to switch between working and traveling modes efficiently, improving adaptability across different job requirements.
Combined with a hub reduction axle, it enhances torque output, increases load-bearing capacity, and ensures stable power delivery under heavy-duty conditions.
High Lift & Dumping Performance for Efficient Material Handling
With a 3500mm dumping height and up to 4700mm lifting height, the machine enables efficient loading into high-sided trucks, reducing cycle time and increasing jobsite productivity.
Specifications
| Overall Dimension（L×W×H） | mm | 6500*2000*2800 |
| Wheel Base | mm | 2250 |
| Wheel Tread | mm | 1580 |
| Min. Ground Clearance | mm | 300 |
| System Pressure | MPa | 28 |
| Operating Weight | Kg | 5800 |
| Max. Speed | Km/h | 38 |
| Max. Climbing Gradient | ° | 35 |
| Digging Parameters | ||
| Min. Turning Radius | mm | 3700 |
| Max. Digging Depth | mm | 3400 |
| Max. Digging Radius | mm | 5100 |
| Bucket Width | mm | 500 |
| Backhoe Capacity | m³ | 0.2 |
| Max. Digging Height | mm | 5000 |
| Rotary Angle Of Excavator | ° | 180 |
| Loading Parameters | ||
| Max. Dumping Height | mm | 3500 |
| Max. Dumping Distance | mm | 900 |
| Bucket Width | mm | 2000 |
| Bucket Capacity | m³ | 1 |
| Max. Loading Lifting Height | mm | 4700 |
| Engnie | Yunnei 4102 | |
| Rated Power | KW | 76 |
| Rated Speed | r/min | 2400 |
| Cylinders-Inside Diameter | 4-102 | |
| Gear Shift | F2/ R2 | |
| Steering Angle | ° | 38 |
| Tire Size | 16/70-20 | |
| Fuel Tank | L | 60 |
| Hydraulic Tank | L | 60 |
| Drive Type | Four-wheel drive | |
| Variable Speed Type | Hydraulic variable speed |

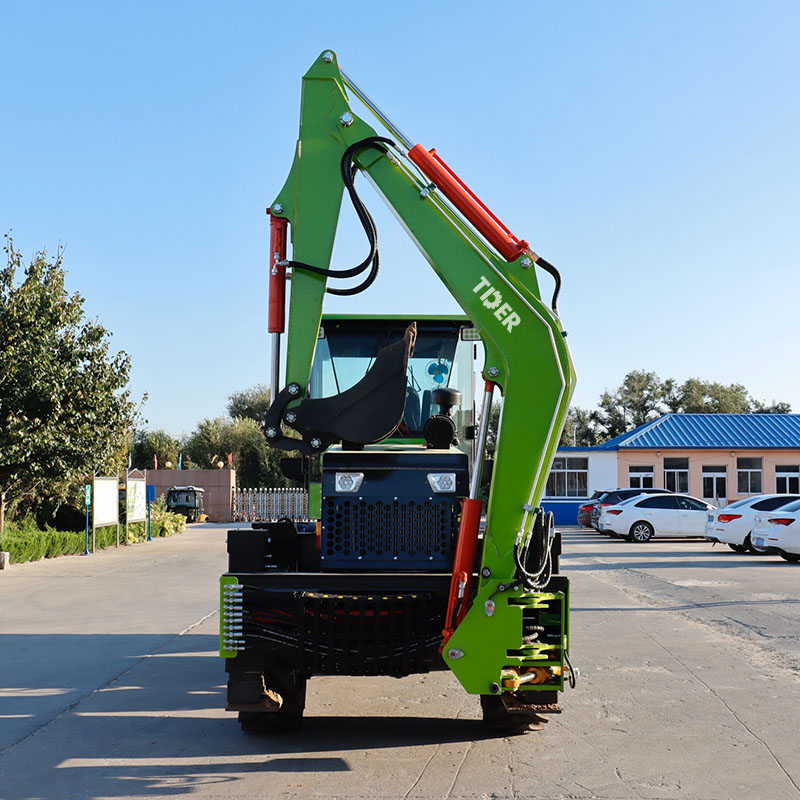

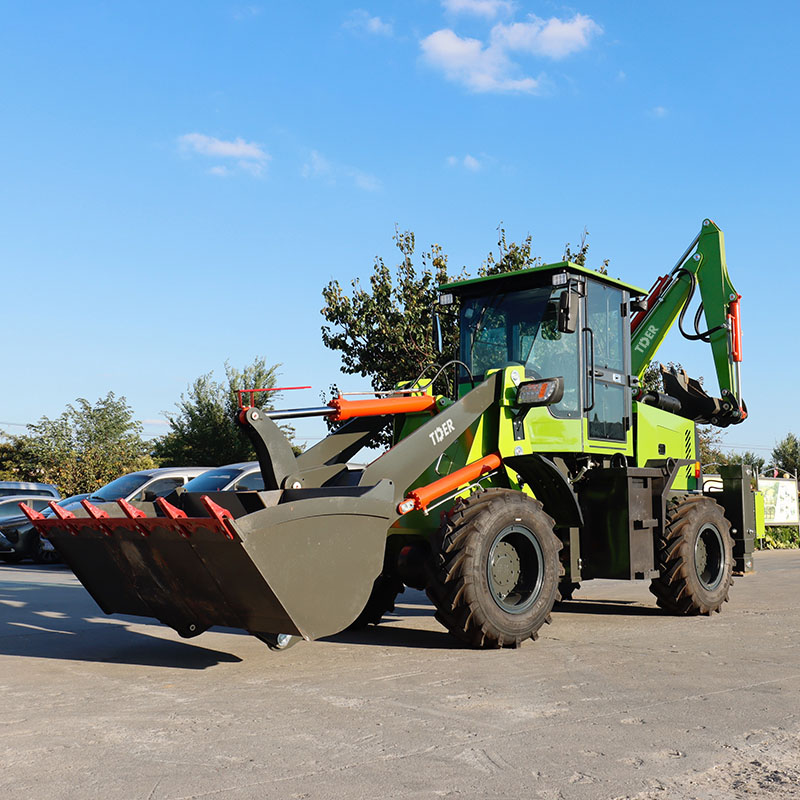

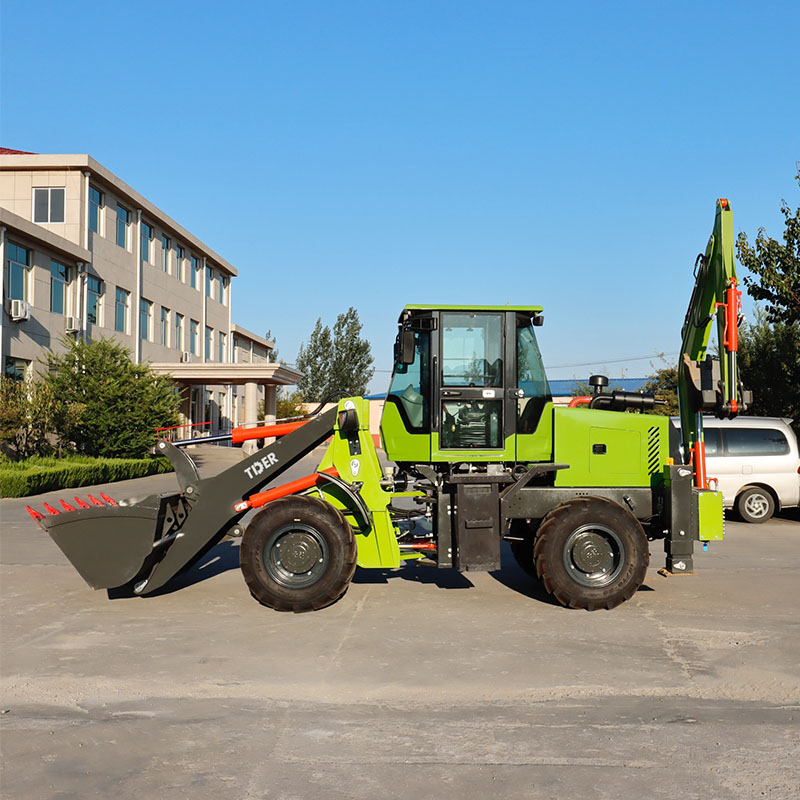

Product Showcase
