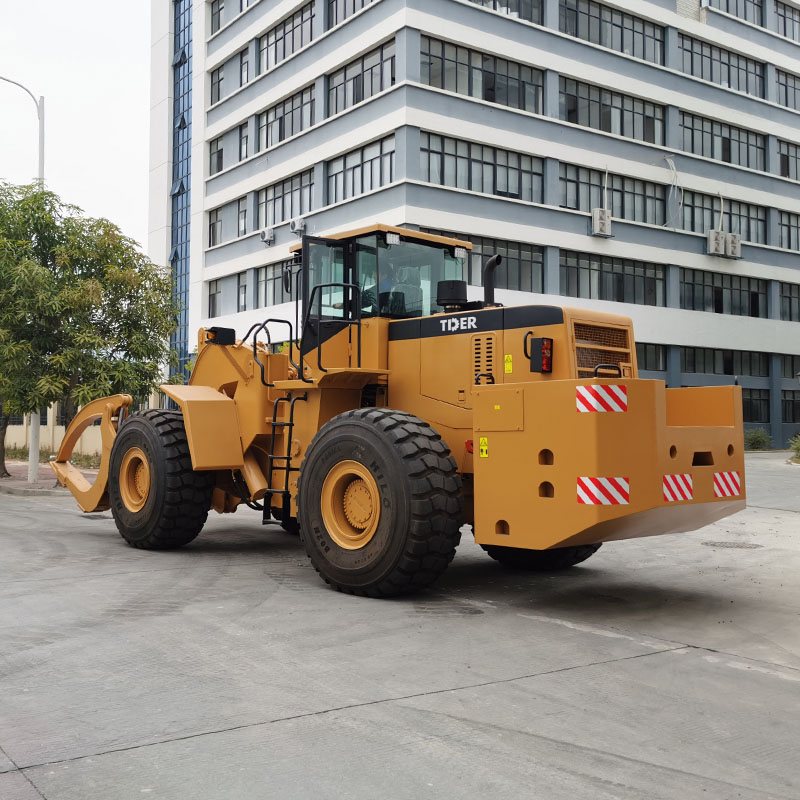

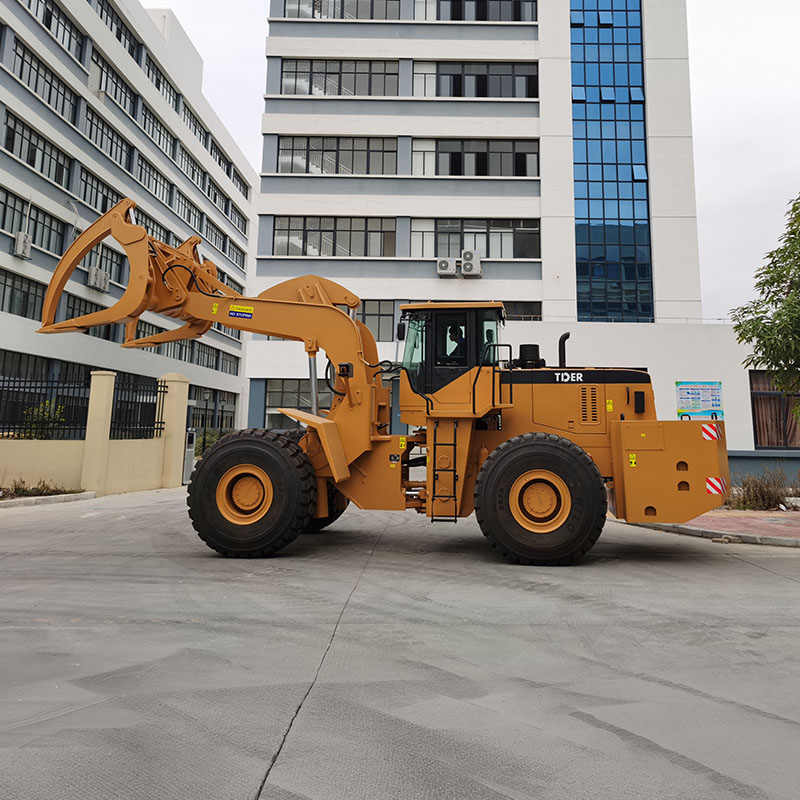

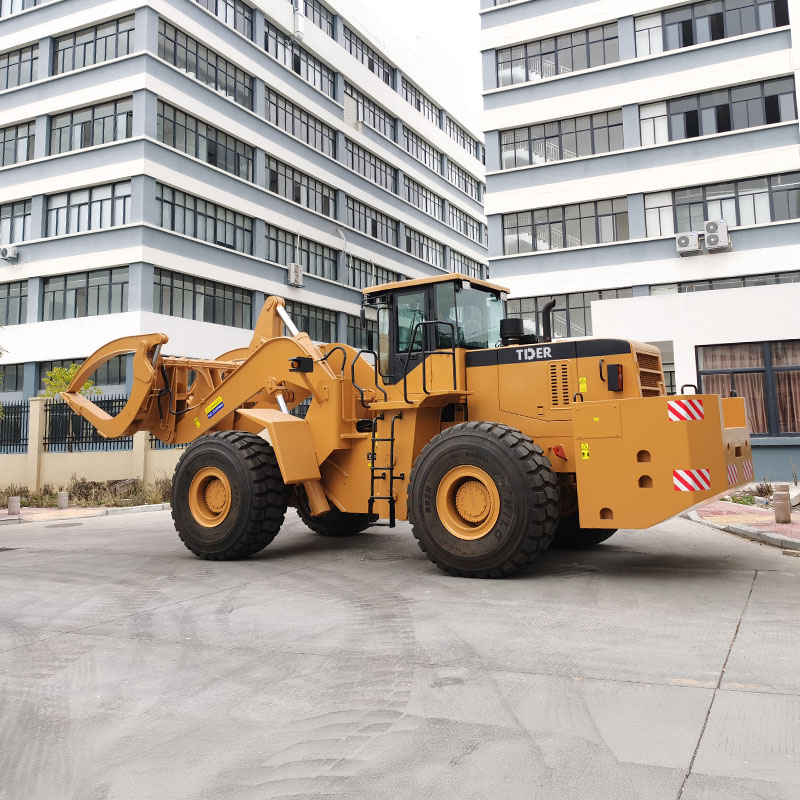

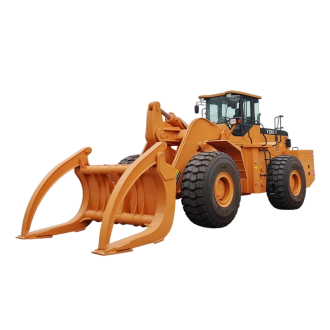

Name: 18 Ton Log Loader Machine for Heavy Duty Forestry Work
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

High-Torque Power System for Demanding Work Cycles

The 178kW Weichai engine provides reliable power output for sustained loading operations, ensuring consistent response under frequent lifting, travel, and material handling conditions in heavy-duty forestry applications.

Industrial-Grade Components

A heavy-duty transmission system combined with robust axle and hydraulic components ensures stable power transmission and reliable load distribution, improving durability and operational consistency under long working hours.

High Stability Under Full Load

The 25-ton class reinforced chassis structure enhances overall machine rigidity and balance, reducing deformation risk and improving stability during high-capacity timber lifting and transport operations.

Integrated Hydraulic Control System for Precise Operation

Pilot control system combined with optimized hydraulic components enables smooth and accurate handling, improving operator efficiency during repetitive loading and stacking operations.

Specifications

Operating Weight	kg	25000
Rated Load	kg	18000
Engine Model	-	Weichai
Rated Power	kW	178
Rated Rotate Speed	r/min	2000
Max. Torque	N.m	≥920
Max. Dumping Height	mm	3850
Forward Gear I Speed	km/h	0-11.5
Forward Gear II Speed	km/h	0-38
Reverse Gear I Speed	km/h	0-16
Grade Ability	°	≥25
Overall Length	mm	8600
Overall Width	mm	3230
Overall Height	mm	3800
Turning Angle	°	35
Wheelbase	mm	3600
Wheel Tread	mm	2410
Cycling Time	s	12
Tire Model	-	26.5-25

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
