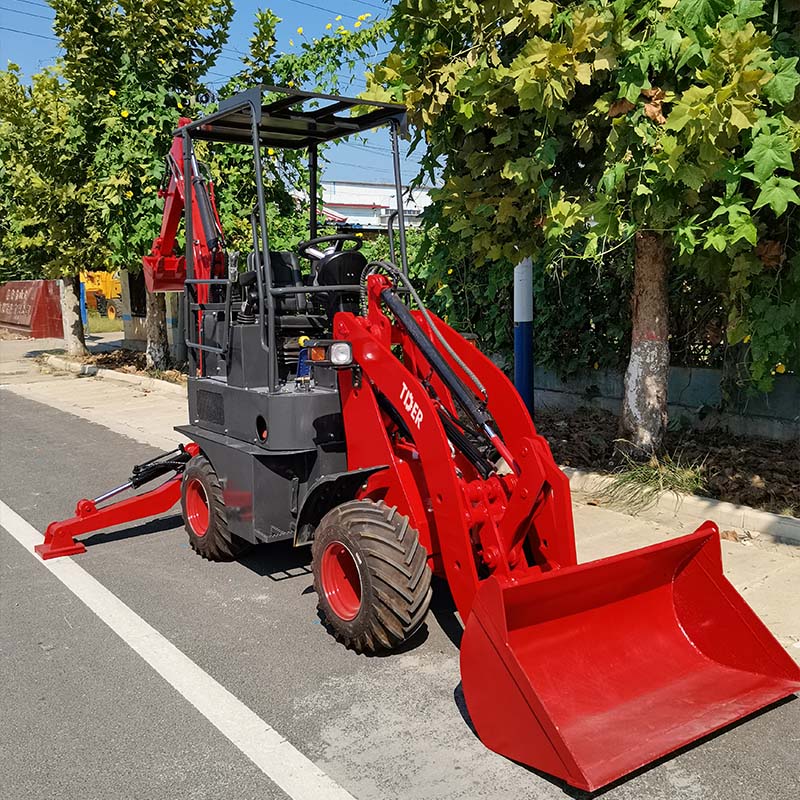

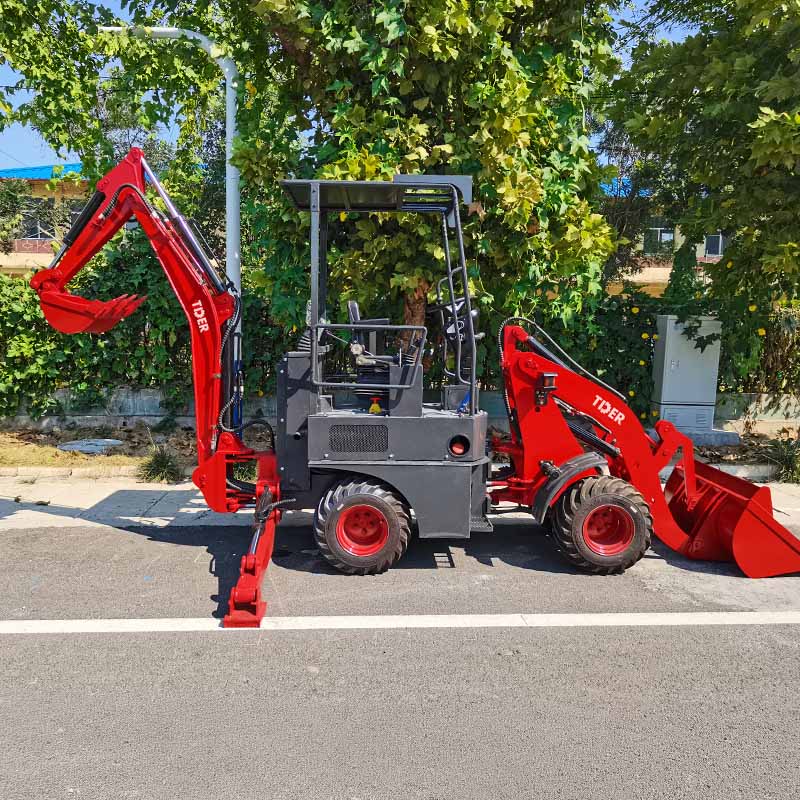

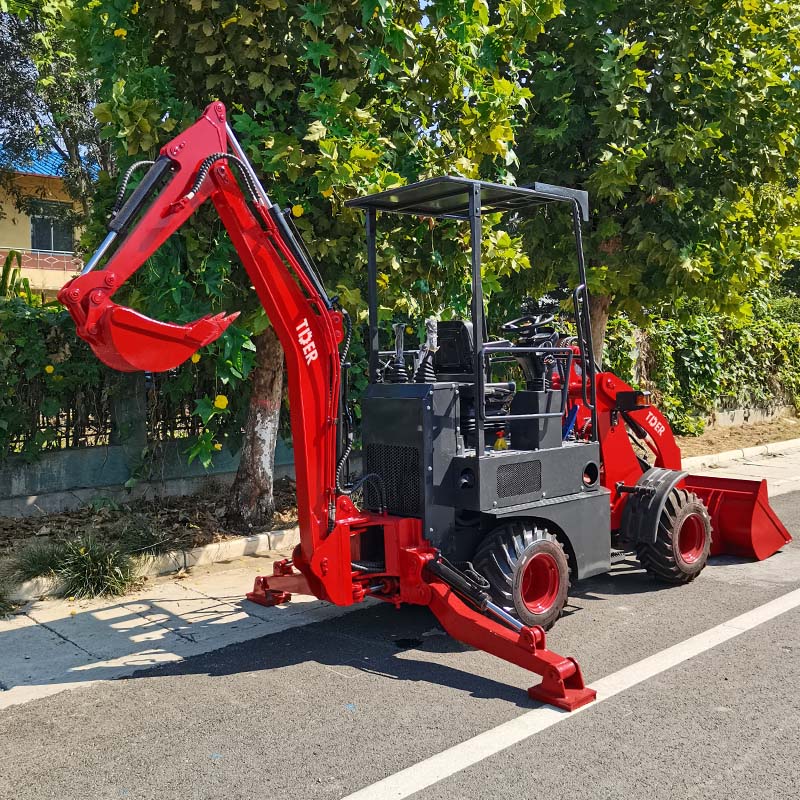

Mini Backhoe Loader
ZT06-10
Features
Kubota EPA Engine for Fuel Efficiency & Global Compliance
Powered by a Kubota D1105-EF02 18.2kW EPA Euro V engine, the machine delivers stable output with excellent fuel efficiency. As an internationally recognized engine brand, Kubota ensures reliable performance, low emissions, and reduced operating costs.
Hydrostatic Drive System for Smooth and Easy Operation
The hydrostatic transmission system eliminates traditional gearbox shifting, providing smoother acceleration, easier control, and improved operator comfort. This design enhances efficiency in frequent forward-reverse operations.
Compact Structure for Narrow Job Sites
With a compact 1150mm width and 1800kg machine weight, ZT06-10 is ideal for confined spaces such as urban construction, landscaping, farms, and pipeline work.
A-Frame Outrigger Stability System for Safe Excavation
The A-type stabilizer legs provide a wider and more balanced ground contact during rear digging operations, significantly improving overall machine stability. This structure helps distribute load forces more evenly, reducing machine movement and improving safety during lifting and excavation work.
Effortless Multi-Function Control for Easy Operation
The pilot control system simplifies both loading and digging operations, allowing smooth coordination between front and rear functions with minimal effort. This design makes the machine easier to operate, especially for new users or small contractors, while improving overall work consistency in repetitive tasks.
Specifications
| Overall Dimension（L×W×H） | mm | 5000*1150*2800 |
| Wheel Base | mm | 1618 |
| Wheel Tread | mm | 840 |
| Min. Ground Clearance | mm | 175 |
| Operating Weight | kg | 1800 |
| Max. Speed | Km/h | 20 |
| Max. Climbing Gradient | ° | 25 |
| Digging Parameters | ||
| Turning Radius | mm | 2600 |
| Max. Digging Depth | mm | 2400 |
| Max. Digging Dumping Height | mm | 2600 |
| Max. Digging Radius | mm | 2500 |
| Backhoe Capacity | m³ | 0.08 |
| Max. Digging Height | mm | 3640 |
| Rotary Angle Of Excavator | ° | 120 |
| Loading Parameters | ||
| Max. Dumping Height | mm | 2000 |
| Max. Dumping Distance | mm | 1000 |
| Bucket Capacity | m³ | 0.2 |
| Max. Loading Lifting Height | mm | 3000 |
| Engnie | Kubota D1105 | |
| Rated Power | KW | 18.2 |
| Rated Speed | r/min | 2400 |
| Cylinders-Inside Diameter | 4-90 | |
| Gear Shift | F2/ R2 | |
| Tire Size | 26X12-12 | |
| Fuel Tank | L | 30 |
| Hydraulic Tank | L | 30 |
