Concrete Pump
TCP30-10-48R
Features
Intelligent Adaptive Pumping Control System
The system integrates PLC intelligent control with automatic diesel engine speed regulation, continuously adjusting power output based on pumping resistance. This ensures stable fuel consumption efficiency and smooth pumping performance during medium-load construction operations, reducing operator intervention while maintaining consistent output quality.
High-Efficiency Hydraulic Power Optimization Platform
Equipped with a constant power variable displacement piston pump system, the unit maximizes hydraulic energy utilization and ensures stable flow delivery under changing load conditions. The optimized hydraulic circuit enhances responsiveness and improves pumping consistency in continuous operation environments.
Compact High-Mobility Pumping Solution for Urban Projects
With a 30 m³/h output capacity and up to 350m horizontal delivery distance, the TCP30-10-48R is designed for flexible construction environments. Its compact structure enables easy transportation and fast setup, making it ideal for residential buildings, small commercial projects, and urban infrastructure repair works.
Balanced Power System for Cost-Efficient Operation
Powered by a 48kW diesel engine, the system delivers stable output while maintaining low fuel consumption, making it highly cost-effective for contractors handling frequent but medium-scale pumping tasks.
Wear-Resistant Hydraulic End System for Extended Service Life
High-hardness alloy wear plates and cutting rings significantly improve resistance against abrasive concrete materials, reducing maintenance frequency and ensuring longer continuous operation cycles.
Specifications
| Max. Theoretical Concrete Output (High / Low Pressure) | m³/h | 16 / 30 |
| Max. Concrete Pumping Pressure (High / Low Pressure) | MPa | 8 / 4 |
| Max. Pumping Distance (Horizontal / Vertical) | m | 350 / 120 |
| Concrete Delivery Cylinder (Bore × Stroke) | mm | Φ140 × 1000 |
| Hopper Capacity × Feeding Height | L × mm | 400 × 1100 |
| Concrete Slump Range | mm | 100–230 |
| Diesel Engine Power | kW | 48 |
| Hydraulic Oil Tank Capacity | L | 180 |
| Diesel Fuel Tank Capacity | L | 90 |
| Max. Aggregate Size (Pipe Φ89 mm) | mm | 30 |
| Max. Aggregate Size (Pipe Φ108 mm) | mm | 35 |
| Distribution Valve Type | / | S Tube Valve |
| Machine Weight | kg | 3100 |
| Overall Dimensions (L × W × H) | mm | 4300 × 1670 × 1680 |
| Standard Delivery Pipeline Length | m | 100 |
| Total Weight (Including 100m Delivery Pipeline) | kg | 4500 |

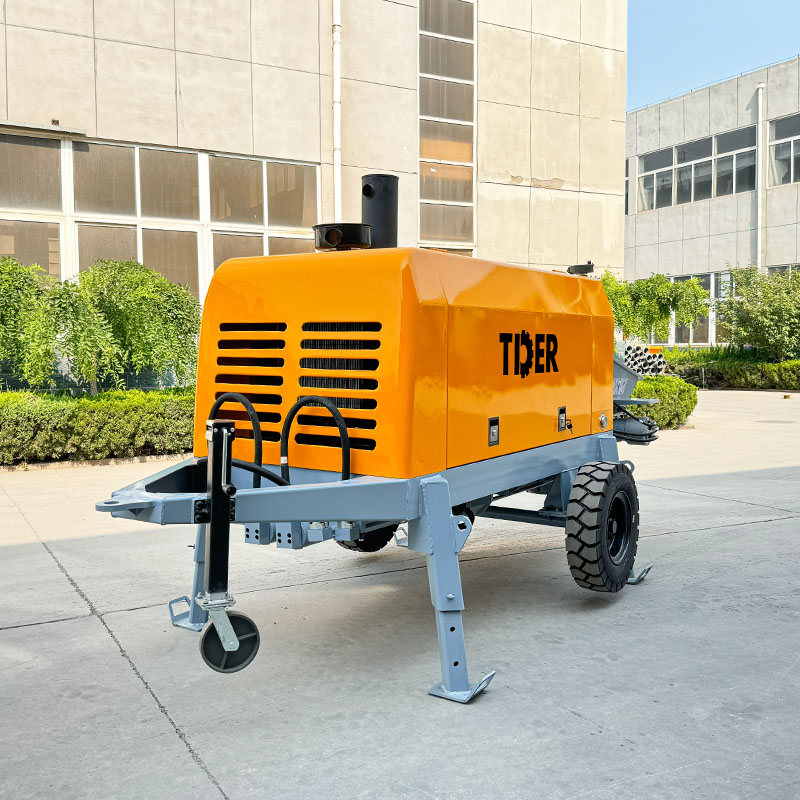

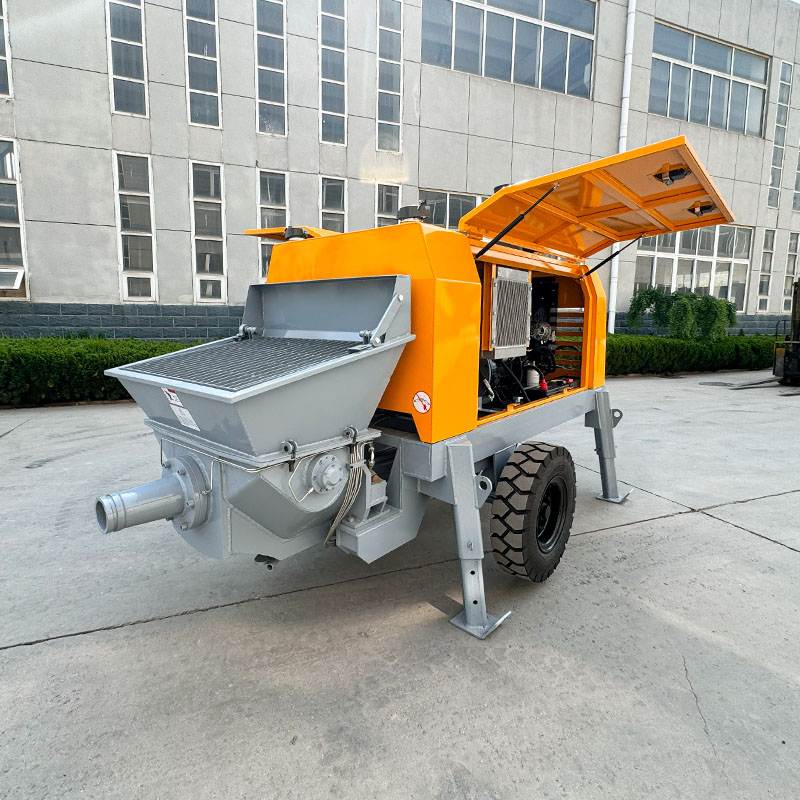

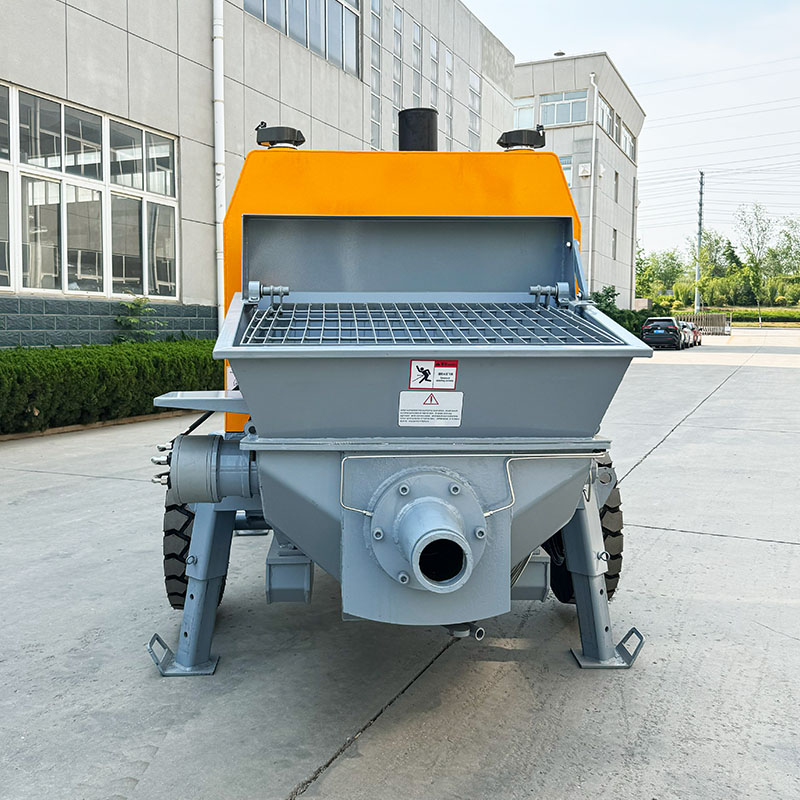

Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
