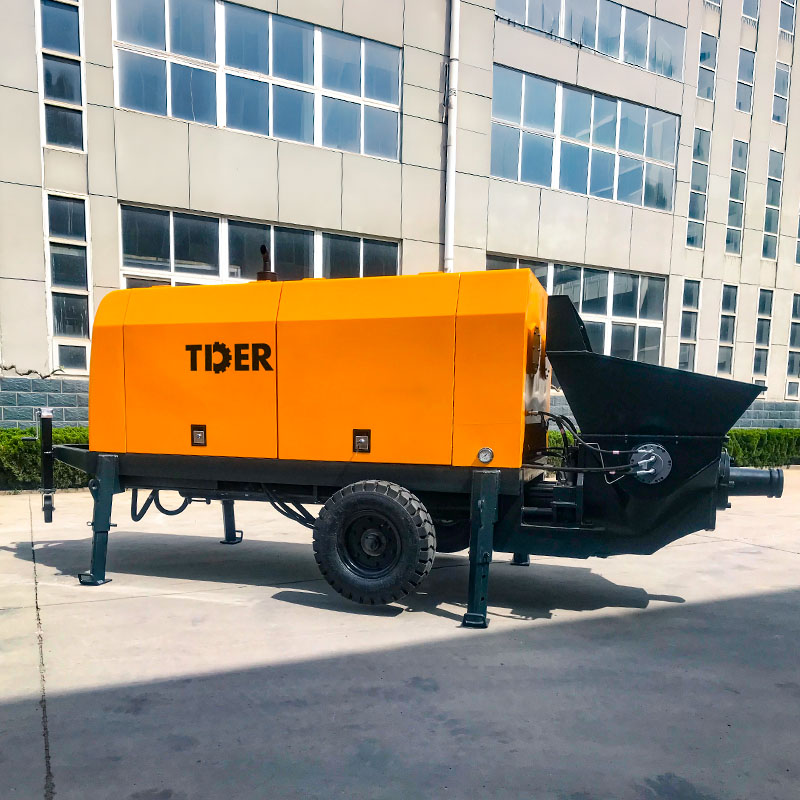

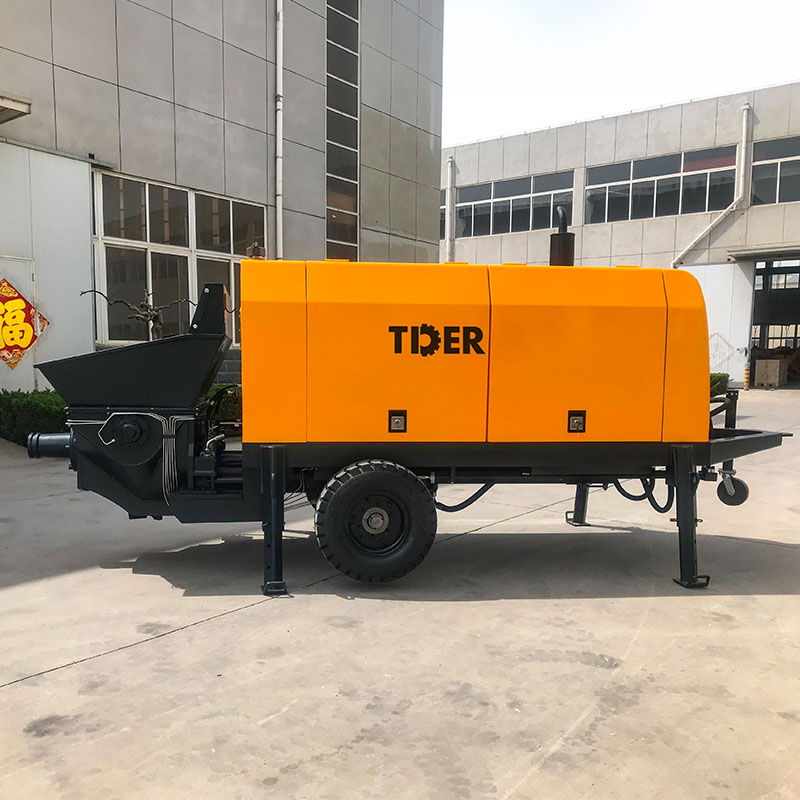

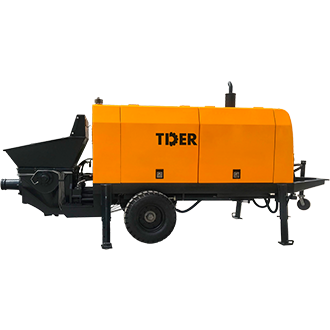

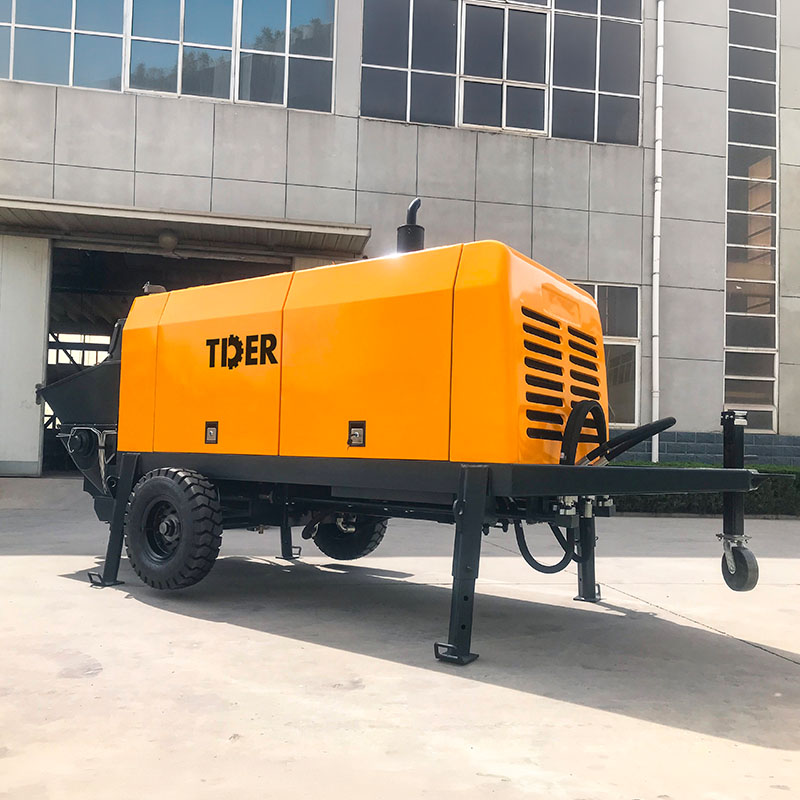

Name: 50 m³/h Cement Pump with Weichai Diesel Engine
Availability: InStock

Merkmale

S-Valve Technology for Consistent Concrete Flow

The TCP50-13-72R uses an advanced S-valve system with floating seal compensation, which automatically compensates for wear at the sealing interface. This helps maintain effective sealing as operating hours accumulate, supporting consistent concrete flow and reducing leakage-related interruptions during continuous pumping.

Wear-Resistant Pumping Components for Longer Service Life

The wear plate and cutting ring use high-hardness wear-resistant alloy materials to withstand the abrasive nature of concrete. This helps slow component wear and maintain pumping performance over extended operating cycles, reducing the frequency of wear-part replacement.

Air-Cooled Hydraulic System for Independent Site Operation

The hydraulic oil cooling system uses an air-cooled heat dissipation design, eliminating the need for an external water source for hydraulic cooling. This makes the pumping system easier to deploy and particularly practical for remote sites where access to water is limited.

Reverse Pumping Function to Help Clear Blockages

The integrated reverse pumping function allows the concrete flow to be reversed when necessary. This provides operators with a practical way to relieve pressure and help clear potential pipeline blockages, reducing unnecessary downtime during pumping operations.

Remote Control for Easier Pumping Management

A remote-control handle is provided with the electrical control box, allowing operators to control the pumping equipment from a more convenient position around the work area. This improves operational flexibility when monitoring concrete placement and managing the pumping process.

Diesel-Powered Cement Pump for Off-Grid Construction

Powered by a 72 kW Weichai WP4.1D80E201 diesel engine, the TCP50-13-72R operates independently in outdoor and off-grid environments where external electrical power may not be readily available. As a cement pump, it is well suited to infrastructure projects such as roads, railways, bridges, tunnels, hydropower and mining.

SPEZIFIKATIONEN

Whole Machine Performance	Maximum Theoretical Concrete Output (Low / High Pressure)	m³/h	48 / 29
	Maximum Concrete Pumping Pressure (High / Low Pressure)	MPa	13 / 7
	Maximum Delivery Distance (Vertical / Horizontal)	m	180 / 550
	Concrete Valve Type	—	S Valve
	Concrete Cylinder Diameter × Stroke Length	mm	Φ180 × 1000
	Outlet Inner Diameter	mm	Φ125
	Delivery Pipe Inner Diameter	mm	Φ125
	Maximum Aggregate Diameter	mm	Pebble: 50 / Gravel: 40
	Hopper Capacity × Loading Height	L × mm	500 × 1100
	Lubrication System	—	Automatic Greaser
	High / Low Pressure Conversion	—	Yes
	Remote Control	—	Wireless Remote Control
Power System	Diesel Engine Model	—	Weichai WP4. 1D80E201
	Rated Power	kW	72
	Rated Speed	r/min	1800
	Rated Fuel Consumption	L/h	12.5
Hydraulic System	Hydraulic Circuit Type	—	Open Circuit
	Main Hydraulic Pump Displacement	mL/r	112
	Pumping System Pressure	MPa	32
	Mixing System Pressure	MPa	12
	Hydraulic Tank Capacity	L	320
Dimensions & Weight	Overall Dimensions (L × W × H)	mm	4850 × 1670 × 1700
	Main Machine Weight	kg	3360
	Total Weight	kg	4500

*HINWEIS: Spezifikationen und Konfigurationen können sich aufgrund kontinuierlicher Produktaktualisierungen und -verbesserungen ohne vorherige Ankündigung ändern. Alle Angaben dienen lediglich als Referenz, einige Funktionen sind optional. Bitte kontaktieren Sie unser internationales Vertriebsteam zur Bestätigung. Die endgültigen Spezifikationen und Konfigurationen unterliegen dem von beiden Parteien unterzeichneten Vertrag.

Produktpräsentation

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Häufig gestellte Fragen

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
