2.5 Ton Telehandler
FT25
Merkmale
Stable Machine Layout for Smoother Driving
The advanced H-type remote drive unit creates a compact drivetrain arrangement with a lower center of gravity and a well-balanced component layout. This helps improve machine stability and contributes to smoother driving and handling during daily operations.
Three Steering Modes for Easier Positioning
Front-wheel steering, four-wheel steering and crab steering give operators greater control over how the machine approaches a working area. Four-wheel steering helps when maneuvering in confined spaces, while crab steering makes lateral positioning easier alongside buildings, walls and loading points.
Precise Hydraulic Pilot Control for Better Load Handling
Hydraulic pilot controls provide responsive control of the working equipment, helping operators make smoother and more precise lifting, lowering and positioning movements. This is particularly useful when handling loads at different heights and working distances.
Automatic Fork Leveling for More Accurate Load Placement
Automatic fork leveling helps keep the forks properly aligned during boom movement, reducing the need for repeated manual adjustment. This makes pallet handling and load placement more efficient and easier to control.
High-Strength BS700 Steel for Structural Protection
BS700 special steel is used in key structural components to provide a strong foundation for repeated lifting and telescopic operations. The material selection supports structural strength while maintaining a practical balance between machine durability and working performance.
Confident Performance Across Diverse Working Conditions

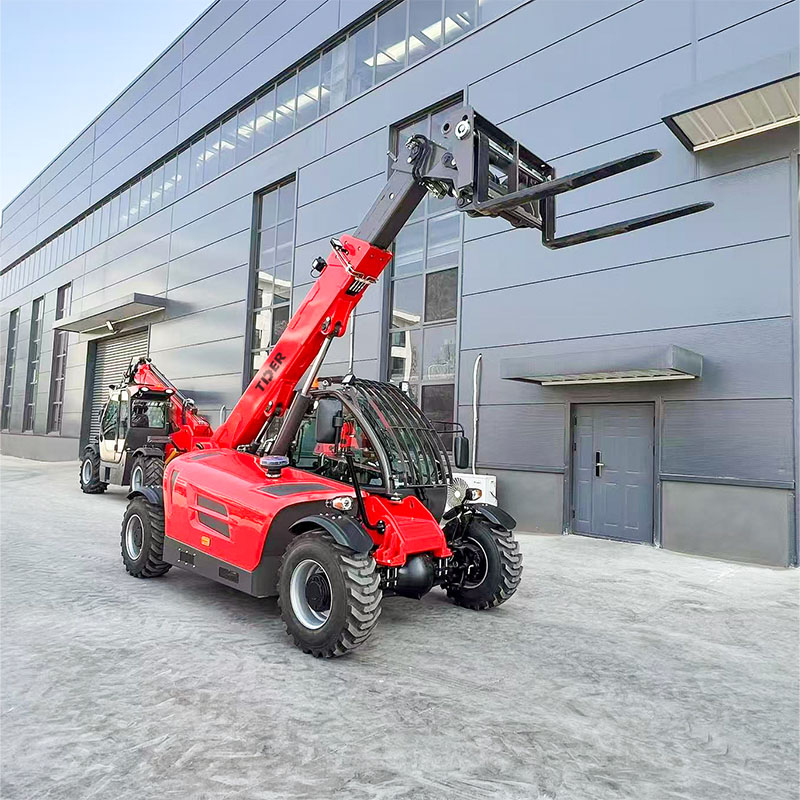

Four-wheel drive, 12-16.5 tires and three steering modes provide useful traction and maneuverability as ground conditions change. These features give the FT25 the practical characteristics of an all-terrain telescopic handler, while its attachment versatility also makes it suitable as an agricultural loader for handling feed, hay, pallets and other farm materials, as well as for construction, mining, ports and municipal applications.
SPEZIFIKATIONEN
| Lifting Performance | Maximum Lift Capacity | kg | 2500 |
| Lift Capacity at Full Height | kg | 2000 | |
| Lift Capacity at Full Reach | kg | 800 | |
| Maximum Lift Height | mm | 5900 | |
| Bucket Breakout Force | N | 4205 | |
| Reach at Maximum Lift Height | mm | 450 | |
| Maximum Forward Reach | mm | 3300 | |
| Dimensions & Weight | Operating Weight | kg | 5500 |
| Overall Height | mm | 2000 | |
| Overall Width (Over Tire) | mm | 2000 | |
| Overall Length to Front Carriage | mm | 3900 | |
| Ground Clearance | mm | 380 | |
| Outside Turning Radius (Over Tire) | mm | 3310 | |
| Front Track | mm | 1480 | |
| Wheelbase | mm | 2300 | |
| Cab | Cab Interior Width | mm | 800 |
| Tires | Tire Size | — | 12-16.5, Pneumatic |
| Engine | Engine Brand / Model | — | YUNNEI / YN27GBZ |
| Rated Power | kW | 58 | |
| Optional Engine | — | EURO 5: CHANGCHAI, 55 kW | |
| Optional Engine | — | EPA 4 / EURO 5: KOHLER KDI2504TCR, 55 kW | |
| Optional Engine | — | EPA 4: CUMMINS QSF2.8, 55 kW | |
| Fork | Fork Length | mm | 1220 |
| Hydraulic System | Hydraulic Oil Tank Capacity | L | 115 |
| Fuel System | Fuel Tank Capacity | L | 63 |
| Transmission | Transmission Type | — | Hydraulic Torque Converter |
| Steering | Steering Type | — | Front-Wheel Steering / Four-Wheel Steering / Crab Steering |
| Drive System | Drive Type | — | 4-Wheel Drive |
*HINWEIS: Spezifikationen und Konfigurationen können sich aufgrund kontinuierlicher Produktaktualisierungen und -verbesserungen ohne vorherige Ankündigung ändern. Alle Angaben dienen lediglich als Referenz, einige Funktionen sind optional. Bitte kontaktieren Sie unser internationales Vertriebsteam zur Bestätigung. Die endgültigen Spezifikationen und Konfigurationen unterliegen dem von beiden Parteien unterzeichneten Vertrag.
