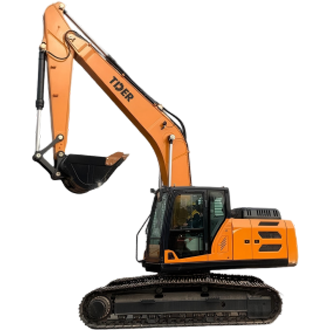

Name: 23 Ton Crawler Excavator with Cummins Engine for Mining
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

High-Performance Excavation for Heavy Duty Applications

The 23 Ton crawler excavator delivers strong excavation capability with a 1.1 m³ bucket and high-power system, making it suitable for large-scale earthmoving, mining support, port handling, and infrastructure construction with high productivity requirements.

Cummins Engine with Optional Weichai & Isuzu

Equipped with a Cummins 133 kW engine, the TCE230 delivers strong torque output and reliable performance. Optional Weichai and Isuzu engines, allowing flexible adaptation to different emission regulations, operating environments, and market requirements worldwide.

Kawasaki Hydraulic Pump for Stable Heavy-Duty Performance

The Kawasaki double pump through-shaft system delivers consistent hydraulic output with improved flow efficiency. The reinforced housing structure enhances durability and ensures reliable operation under continuous heavy-duty working conditions.

Multi-Function Customizable Excavator for Versatile Applications

The machine supports full customization including long boom, lifting cab, and special attachments. It is suitable for port loading, railway bulk material handling, and metal recycling. Optional semi-floating and full-floating configurations allow operation in swamp, river, and dredging environments.

Independent Cooling System with Smart Temperature Control

The hydraulic oil cooler features an independent cooling design with automatic fan speed adjustment based on oil temperature. It reduces fuel consumption while maintaining stable system performance, keeping hydraulic oil temperature below 80°C even in 40°C mining environments.

High-Strength Wear-Resistant Bucket for Mining Conditions

The bucket is built with high-strength wear-resistant steel, with a hardened cutting edge for improved abrasion resistance. It effectively withstands sand, gravel, and rock impact, extending service life under harsh working conditions.

9-Roller Undercarriage for Enhanced Structural Support

The reinforced 9-roller undercarriage improves chassis support and operating balance, allowing the machine to perform more confidently in heavy excavation, loading, and rough terrain applications.

Specifications

Operating Weight	Kg	23000
Engine Model		Cummins 6BTAA5.9
Rated Power	Kw	133KW/2200rpm
Bucket Capacity	m³	1.1
Swing Speed	rpm	11—13
Traveling Speed	km/h	3.8-4.2
Gradeability	°	30°
Hydraulic System
Hydraulic system working pressure	Mpa	34
Hydraulic Pump		PNM
Hydraulic Valve		Parker
Swing Motor		Strong(Sunjin)
Traveling Motor		Doosan
Operating Range
Max. Digging Radius	mm	9850
Max. Digging Depth	mm	6480
Max. Digging Height	mm	9410
Max. Dumping Height	mm	6730
Min. Swing Radius	mm	3555
Overall Dimensions
Overall Length	mm	9565
Overall Width	mm	2990
Overall Height	mm	3000
Track Width	mm	600
Track Height	mm	950

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
